Jewelry Laser Welder Accessories & Consumables

Two jobs on one page. If you are setting a bench up, start with the accessories that change what the machine can hold and see. If you are already running one, jump straight to reordering the parts that wear — matched to your model so nothing arrives wrong.

Shop Accessories Quick Reorder
Matched by machine model and serial
From the factory that built the machine

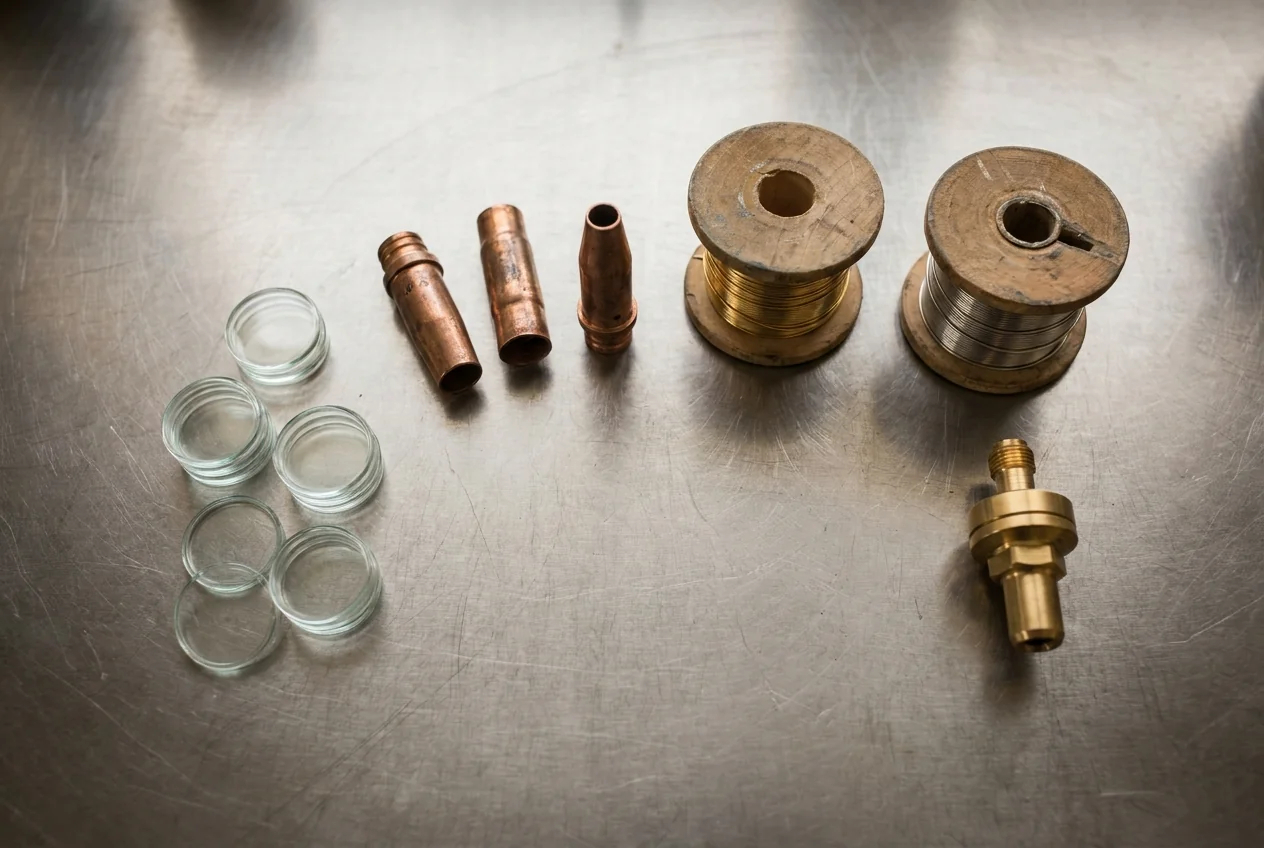

Protective cover glasses, welding nozzles, filler wire spools and a regulator fitting laid out on a bench

Made for precious-metal work

Model-matched before it ships

Reorder from your last order

Part identified before you pay

Shop by Need

Four different reasons to be on this page. Pick the one you are here for.

Accessories & Upgrades

Rotary axes, fixtures, microscope heads and worktables — the parts that change what the machine can hold, reach and resolve.

Browse accessories
Consumables & Reorders

Protective cover glasses, nozzles, filler wire and shielding gas. The things that run out, in the sizes your model takes.

See consumables
Laser Sources

Replacement and upgrade laser sources. Specified against your machine rather than sold off a shelf.

Ask about sources
Spare Parts

Wear parts worth keeping on the shelf, and the ones you only find out you needed when the bench stops.

See what to stock

Frequently Reordered Consumables

The parts that actually run out on a jewelry laser welder. Sizes vary by model — send your model and serial with the reorder and we match them before anything ships.

Round protective lens in a thin metal ring on a bench
Highest turnover
Protective cover glass

Sits between the optics and the work and takes the spatter so the focusing lens does not. Replaced on a schedule, not when it fails.

Four copper welding nozzles standing in a row on a steel bench
Wear part
Welding nozzles

Direct the shielding gas at the joint. A worn or blocked bore shows up as oxide around the weld before it shows up anywhere else.

Spools of gold, rose gold and silver filler wire on a bench
By alloy
Filler wire

Matched to the piece, not to the spool label — gold by karat and colour, silver by alloy, platinum by family. Stock the ones your bench sees weekly.

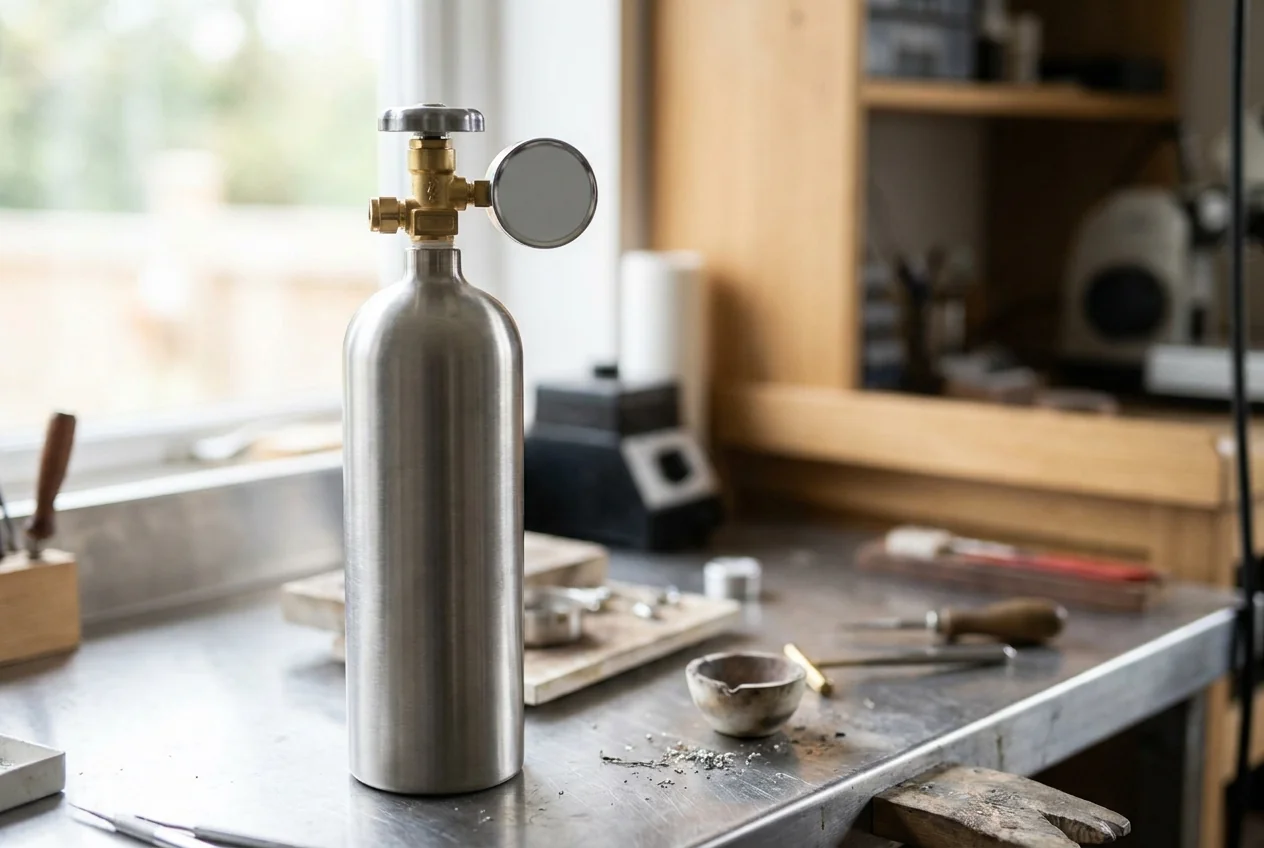

Refillable argon cylinder with regulator on a bench
Shielding
Argon shielding gas

Keeps oxide out of the pool on high-alloy gold, sterling and cobalt-bearing platinum. Cylinders are usually sourced locally — regulators and fittings are not.

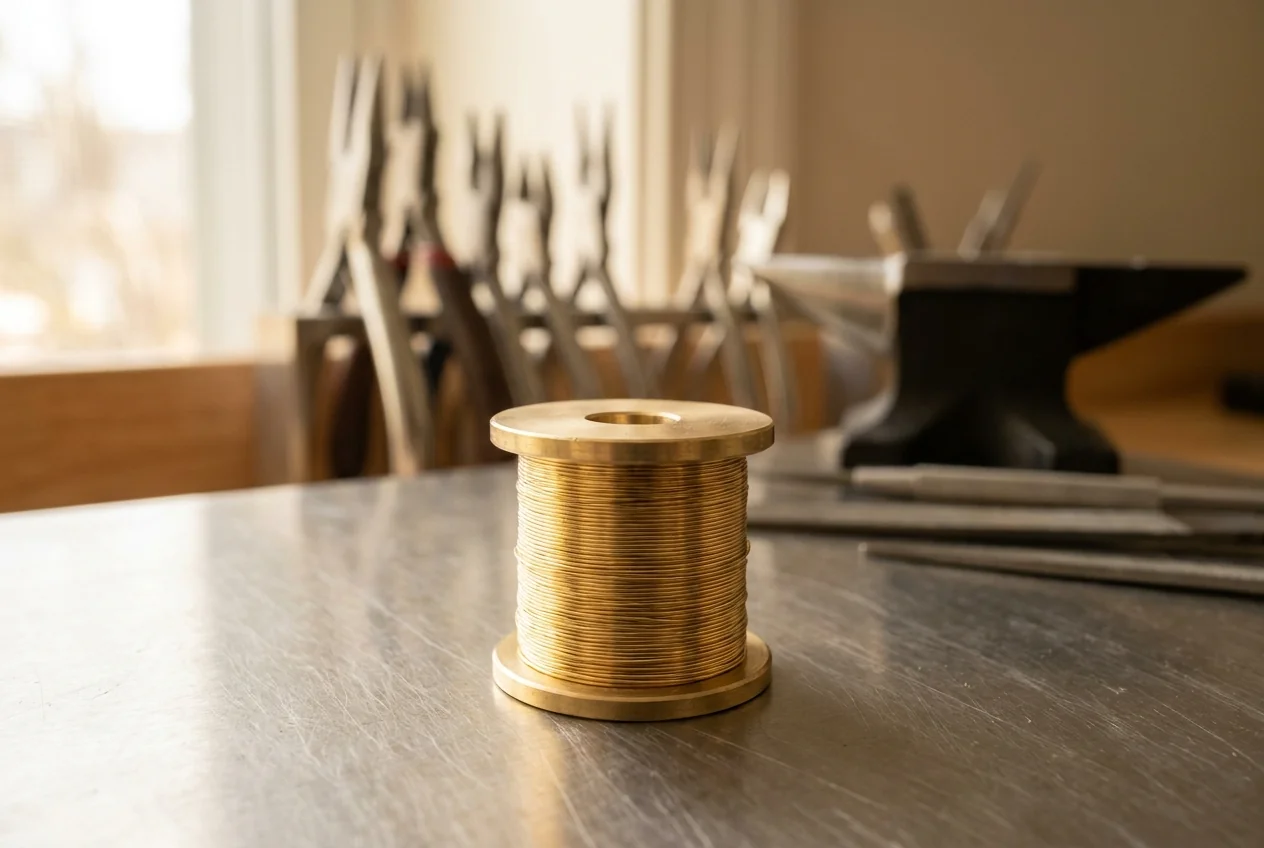

A spool of fine gold filler wire on a steel bench
Precious metal
Gold, silver & platinum wire

10K–22K in three colours, 925 and fine silver, and platinum by alloy family. Ordered by what you repair rather than by what is cheapest per gram.

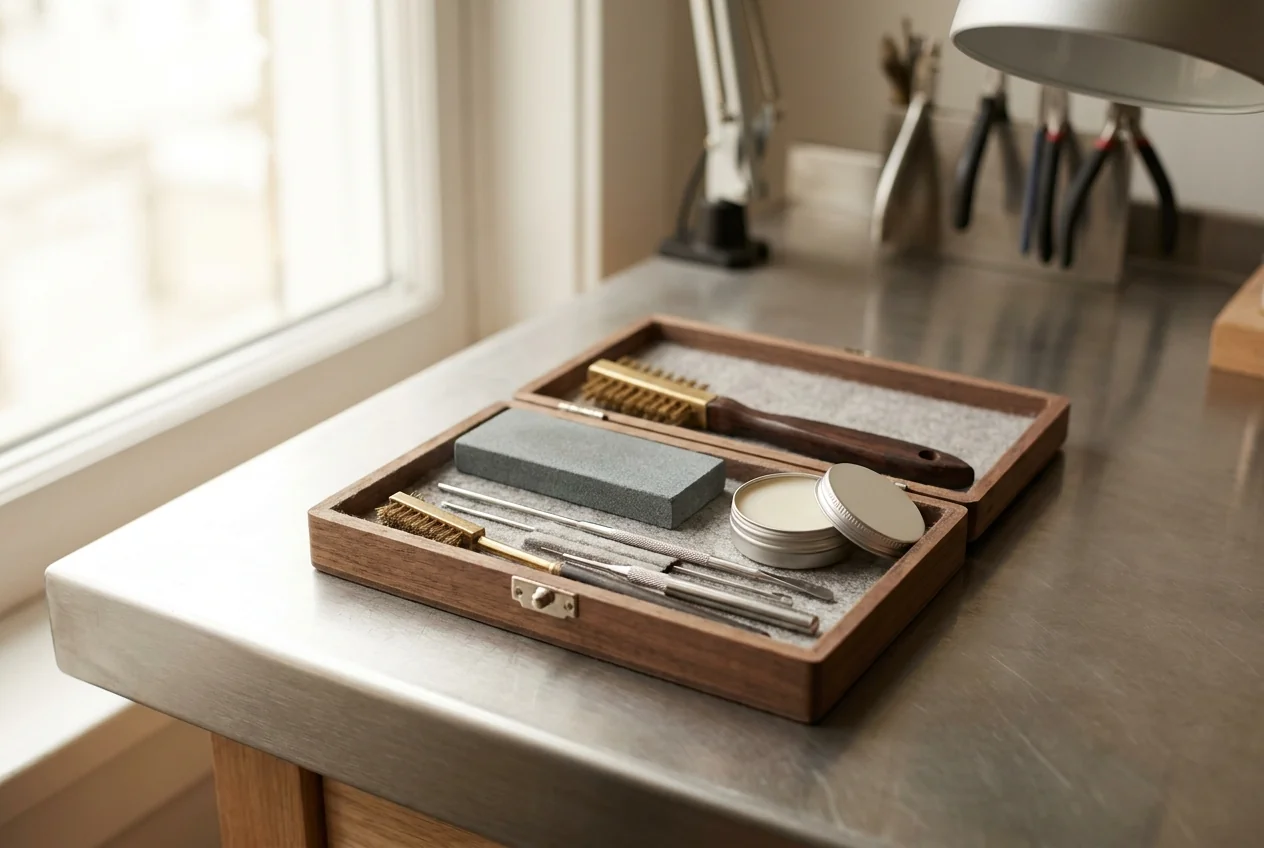

Brushes, grinding stone and polishing compound in an open maintenance case
Maintenance
Nozzle & optics cleaning kit

Brushes, compound and a stone for keeping bores clear and mounts clean. Ten minutes a week that keeps consumables lasting the interval they are rated for.

Quick Reorder

Already running a machine? Five fields. We confirm the part against your model before we quote it, so nothing arrives that does not fit.

Reorder What you need
Reply Where to send the quote

Consumables by Machine

Most of the list is the same across the range. What differs is dimensions — and dimensions are exactly what gets ordered wrong. Pick your model, then send the serial with the order.

Regular consumables
  • Protective cover glass
  • Welding nozzles
  • Filler wire by alloy
  • Shielding gas fittings
Spare parts
  • Focusing optics
  • Sealing rings
  • Coolant / filtration parts
  • Foot pedal switch
Optional accessories
  • Ring rotary axis
  • Precision cutting fixture
  • Adjustable lifting worktable
  • Microscope head upgrade

This model is offered in more than one configuration, including CCD viewing. Cover glass diameter and nozzle bore follow the configuration, not the model name — send the serial.

Regular consumables
  • Protective cover glass
  • Welding nozzles
  • Filler wire by alloy
  • Fume extraction filter
Spare parts
  • Focusing optics
  • Eyepieces for the dual-eyepiece head
  • Cooling circuit parts
  • Sealing rings
Optional accessories
  • Micro rotary axis
  • Precision cutting fixture
  • Adjustable lifting worktable
  • Additional fixtures

Built-in fume extraction means a filter element on the reorder list that the other models do not have. Worth stocking a spare.

Regular consumables
  • Protective cover glass
  • Welding nozzles
  • Filler wire by alloy
  • Coolant and water filter
Spare parts
  • Focusing optics
  • CCD / screen assembly parts
  • Chiller circuit parts
  • Sealing rings
Optional accessories
  • Ring rotary axis
  • Micro rotary axis
  • Precision cutting fixture
  • Adjustable lifting worktable

Water-cooled machines add coolant and filter changes to the schedule. These are the parts a bench most often discovers it needed on the day it stopped.

Regular consumables
  • Protective cover glass
  • Welding nozzles
  • Filler wire by alloy
  • Shielding gas fittings
Spare parts
  • Focusing optics
  • Microscope eyepieces
  • Air-cooling parts
  • Sealing rings
Optional accessories
  • Micro rotary axis
  • Precision cutting fixture
  • Microscope head upgrade
  • Adjustable lifting worktable

The compact platform is offered across a power range, so optics and nozzle sizes are set by the configuration you were shipped. Send the serial rather than the model name alone.

Application → Accessory Matrix

Find the work you do most, then read across. This is the fastest way to see what a bench is missing.

Application Rotary axis Cutting fixture Microscope upgrade Lifting worktable
Ring sizing Ring axis Helpful Optional Helpful
Chain & findings Micro axis Helpful Key Optional
Prong & stone-set Optional Key Key Helpful
Filigree & wirework Micro axis Helpful Key Helpful
Porosity & crack filling Optional Key Helpful Helpful
Batch & production Helpful Key Helpful Key

"Key" means the job is usually limited by this before anything else. It ranks what to buy first — it is not a compatibility statement, which is confirmed against your model.

Build Your Workstation

Hover or tap a marker to see what sits there and what it costs to keep running.

Operator placing a ring on a fixture inside the work chamber of a jewelry laser welder

The stereo microscope head and the rotary axes are not visible in this view — both mount above and onto the worktable respectively. Ask and we will confirm the fit for your chamber.

Standard vs Optional vs Consumable

Three different budgets. Knowing which column an item sits in stops a shop budgeting a consumable once and then being surprised every quarter.

Standard with the machine

Ships with it. Confirm on your quotation rather than from this page.

  • Welding head and focusing optics
  • Viewing system for that model
  • Cooling system for that model
  • Foot pedal and basic tooling
  • Starting set of cover glasses
Optional accessories

Bought once, changes what the machine can do. Specified against your model.

  • Dual-purpose ring rotary axis
  • Micro rotary axis
  • Precision cutting fixture
  • Stereo microscope head upgrade
  • Adjustable lifting worktable
  • Replacement or upgrade laser source
Consumable & wear

Recurring cost. Worth working out per month at your volume before you buy.

  • Protective cover glasses
  • Welding nozzles
  • Filler wire by alloy
  • Shielding gas
  • Coolant, water and air filters
  • Sealing rings and small seals

Spare Parts & Maintenance Stock

What is worth having on the shelf before you need it, sorted by how badly the bench stops without it.

Keep several
Wear parts

Replaced on a schedule. Running out of these turns a five-minute job into a week's wait.

  • Protective cover glasses
  • Welding nozzles
  • Sealing rings
Keep in stock
Common consumables

Used every working week. Order by what your bench actually repairs, not by unit price.

  • Filler wire in your working alloys
  • Shielding gas and fittings
  • Coolant, water and air filters
Keep one
Emergency spares

Rarely needed, and the bench is down until they arrive. One on the shelf changes the worst day of the year.

  • Focusing optics
  • Foot pedal switch
  • Cooling circuit parts
How after-sales support works

Tell Us What Machine You Run

Send the model and what you are trying to do, and we will come back with the accessory that fits or the consumable that matches — identified before you pay for it.

Get an Accessory Recommendation Request a Consumable Quote Quick Reorder

Or leave an email and we will send a reminder when your usual consumables are due for reorder.
